MKM144197] Messerschmitt Bf 109K-4 ‘Konrad’

RELEASED 11/2025

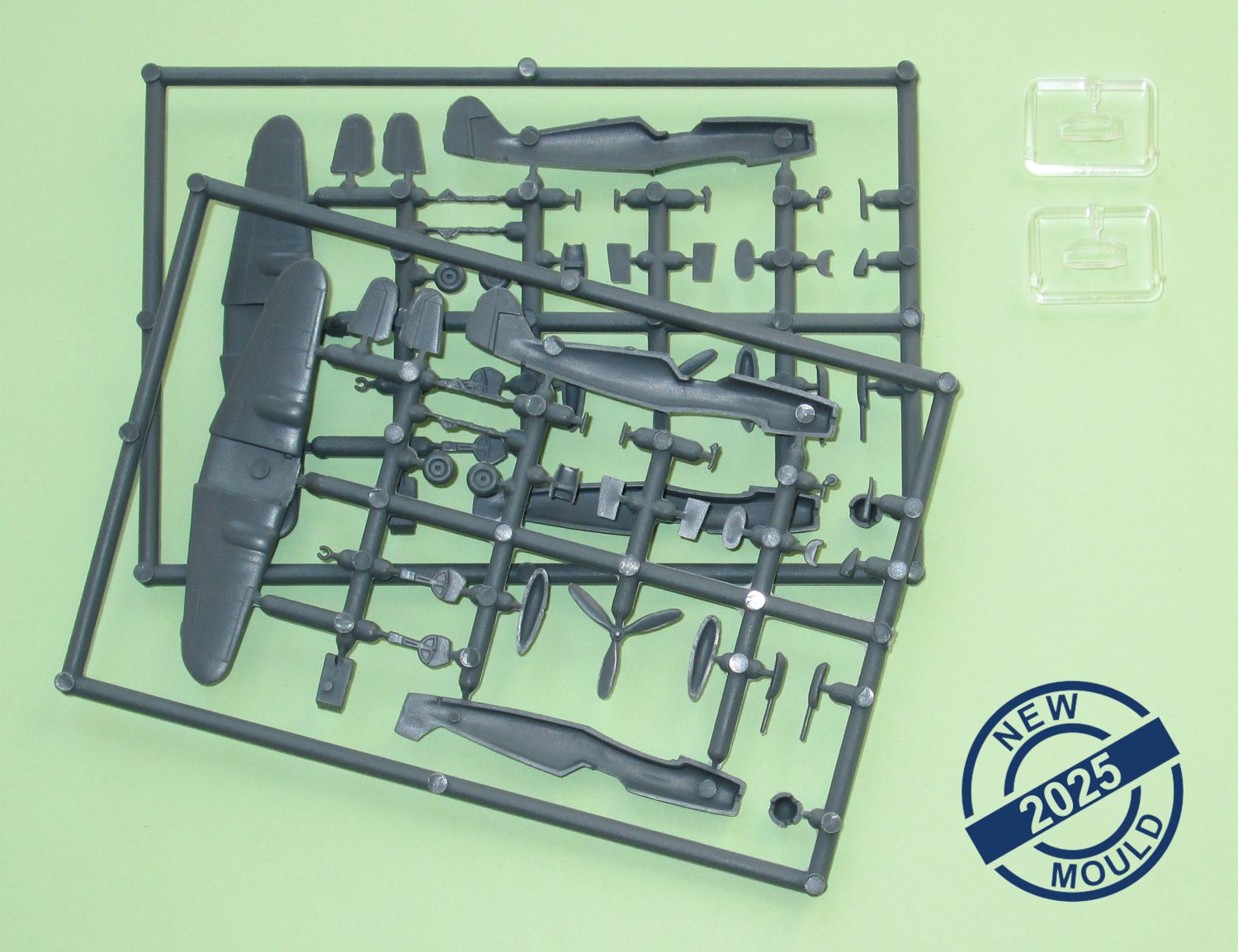

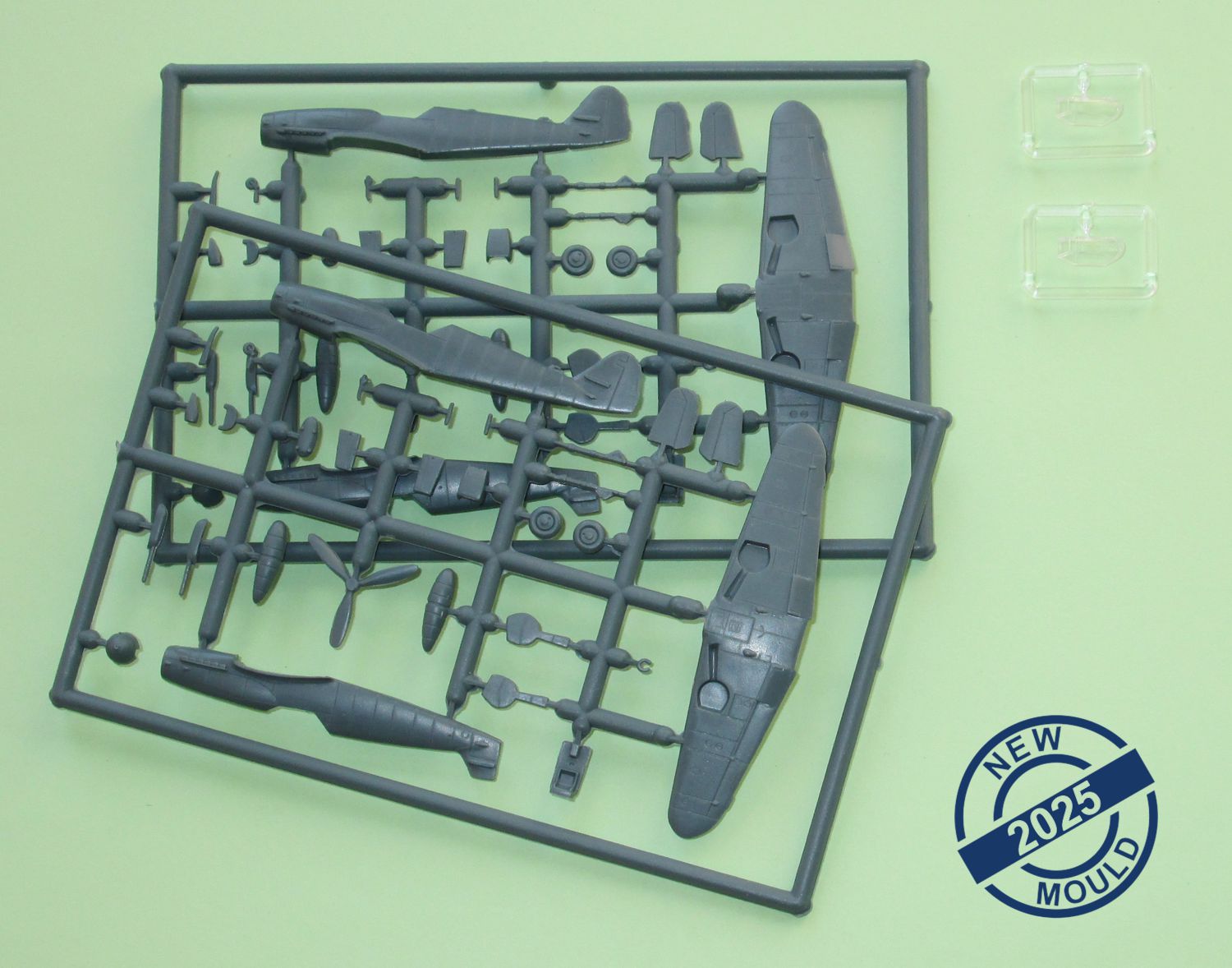

Two injection-moulded kits are supplied in this box and each kit contains 27 parts and one clear part (the cockpit canopy). A comprehensive instruction leaflet and a decal sheet are included. The rear side of the box now comprises the representation of a tarmac section of a military airfield which can be cut out and used as a display base for the assembled model.

NOTE: these kits were re-designed and new masters were made. The cockpit canopies were 3D designed and made by injection moulding into a metal mould.



On-line order (MARK I Modellerʼs Boutique via Miniwingʼs e-shop)

Curious about related product(s)?

[BRL144001] Luftwaffe seats

[BRL144004] Luftwaffe seat belts

[BRL144019] SC50 German aerial bombs

[BRL144020] SC250 German aerial bombs

[BRL144021] SC500 German aerial bombs

[BRL144022] German 300l fuel tanks

[BRL144033] Luftwaffe wheel chocks

[BRL144164] Bf 109K Photo-etched set (designed to be used with Mark I Models kits)

[BRL144184] Bf 109K wheel set (designed to be used with Mark I Models kits)

[MKA14407] Grassy Surface

[MKA14411] WWII Luftwaffe Base – small (square concrete panels)

[SD-R4435] Bf 109G/K main undercarriage – 2 sets (designed to be used with Mark I Models kits)

[SD-R4436] Bf 109G/K cockpit – 2 sets (designed to be used with Mark I Models kits)

[SD-R4437] Bf 109G/K external stores Pt.1 (4x SC50, 1x SC250, 1x fuselage bomb carrier, 2x underwing cannon pod – 2 sets, designed to be used with Mark I Models kits)

[SD-R4438] Bf 109G/K/Avia S-199 external stores Pt.2 (8x SC50, 1x fuselage bomb carrier – 2 sets, designed to be used with Mark I Models kits)



SKU: MKM144197 Categories: , , Tags: ,

Description

The Messerschmitt Bf 109 was a German fighter aircraft designed in the mid-1930s and it represented the first modern fighter of the era. Originally conceived as an interceptor, later models were developed to fulfil various roles, such as bomber escort, fighter-bomber, day and night fighter, ground-attack or reconnaissance. Various armament modifications evolved in service, using pre-packaged or field kits. The aircraft was of an all-metal monocoque construction, featuring an enclosed canopy and a retractable landing gear.
The Bf 109K was the last in the ‘109’ evolutionary line and also the most uniform model. Work on this version began in the spring of 1943 and the series production started in August 1944 with the K-4 variant.
The standard features were the DB 605D engine, the Erla clear-view canopy, large main wheels with corresponding large oblong wing bulges, deeper oil cooler under the nose and tall tail fin. A long fully retractable tail wheel was fitted, while small mainwheel well outer doors were also provided (although frequently removed in service). The Bf 109K-4 was equipped with an engine-mounted MK 108 cannon and two MG 131 guns in the nose. Some aircraft were also fitted with two underwing MG 151/20 cannon gondola pods (R4 kit) or WGr. 21 rockets. Some 1,200 aircraft were mainly built by Messerschmitt, while Erla plant also supplied a small quantity.
The Bf 109 was the most produced fighter aircraft in the aviation history, and besides the German Luftwaffe it served in many other air forces and gallantly fought in all aerial combats of WWII.



Colour schemes included in the kit:

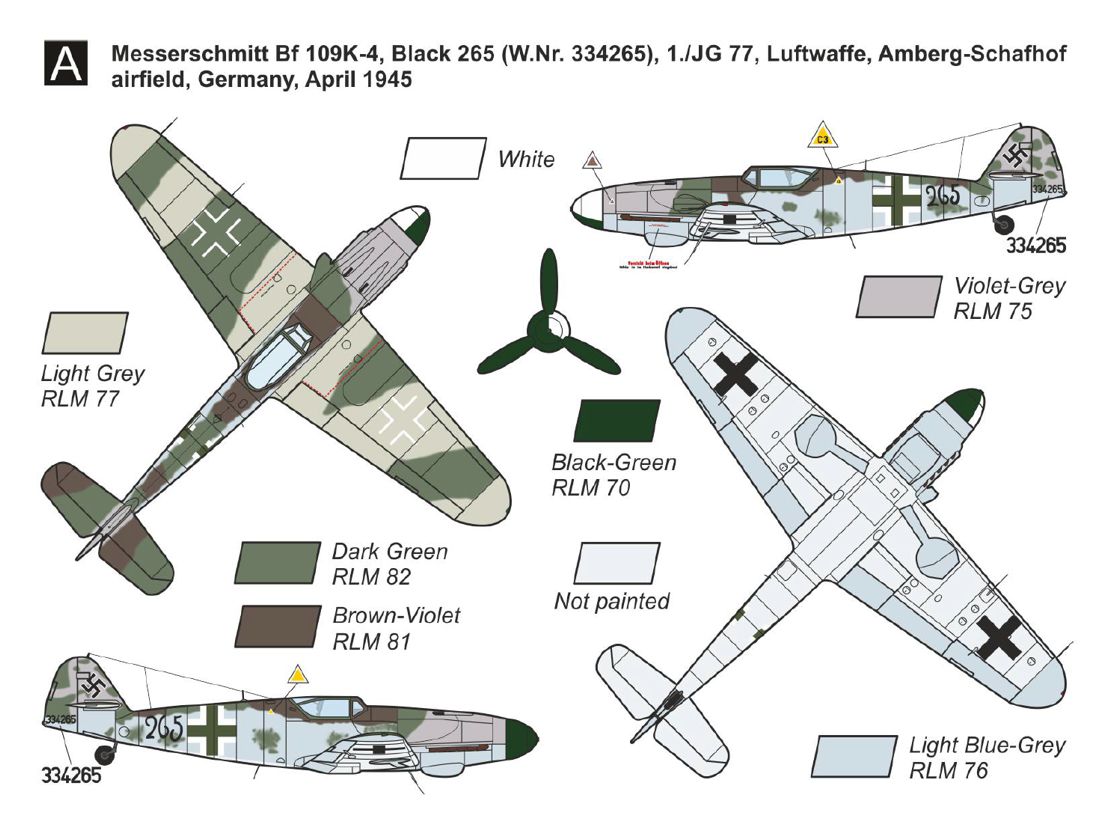

1) Messerschmitt Bf 109K-4, Black 265 (W.Nr. 334265), 1./JG 77, Luftwaffe, Amberg-Schafhof airfield, Germany, April 1945

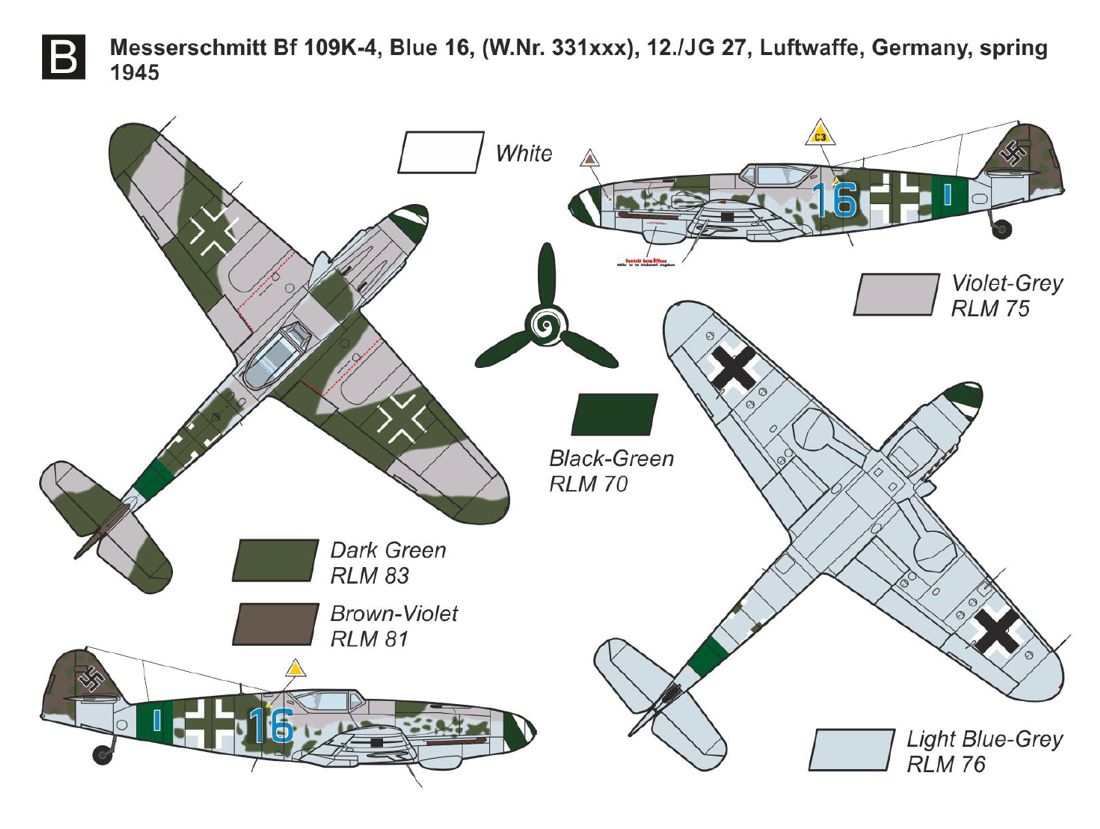

2) Messerschmitt Bf 109K-4, Blue 16, (W.Nr. 331xxx), 12./JG 27, Luftwaffe, Germany, spring 1945

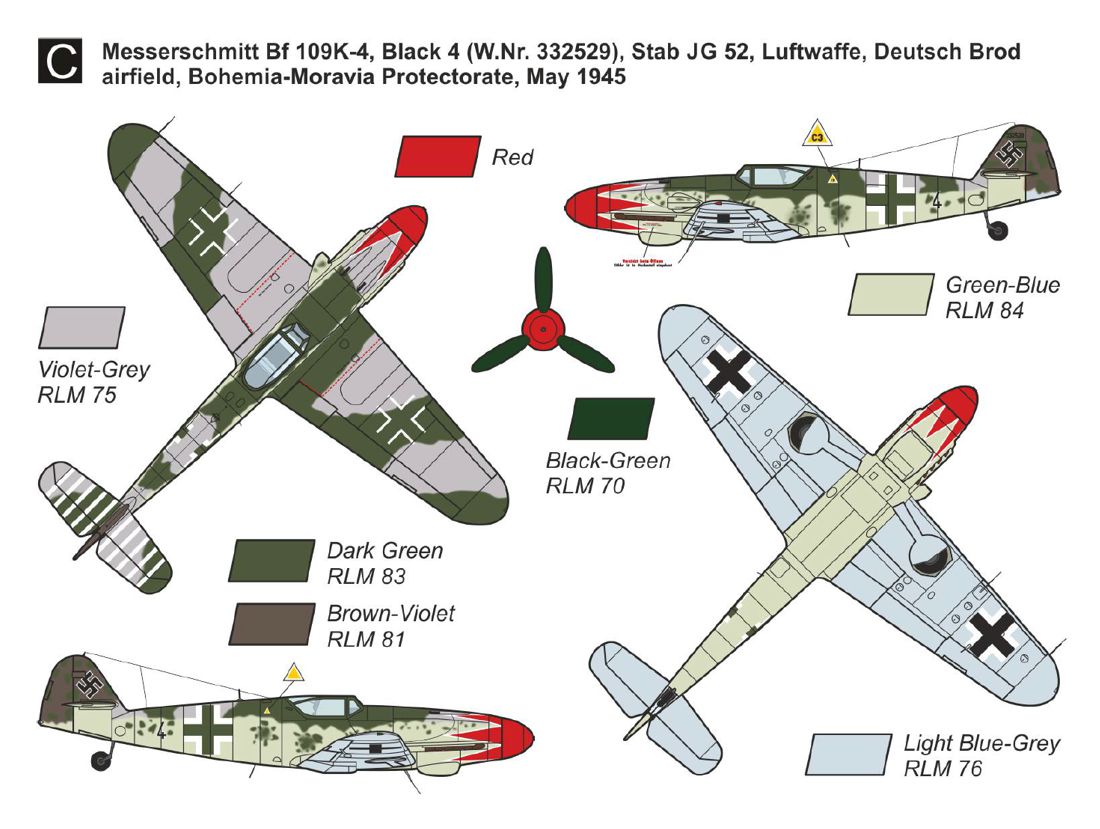

3) Messerschmitt Bf 109K-4, Black 4 (W.Nr. 332529), Stab JG 52, Luftwaffe, Deutsch Brod airfield, Bohemia-Moravia Protectorate, May 1945

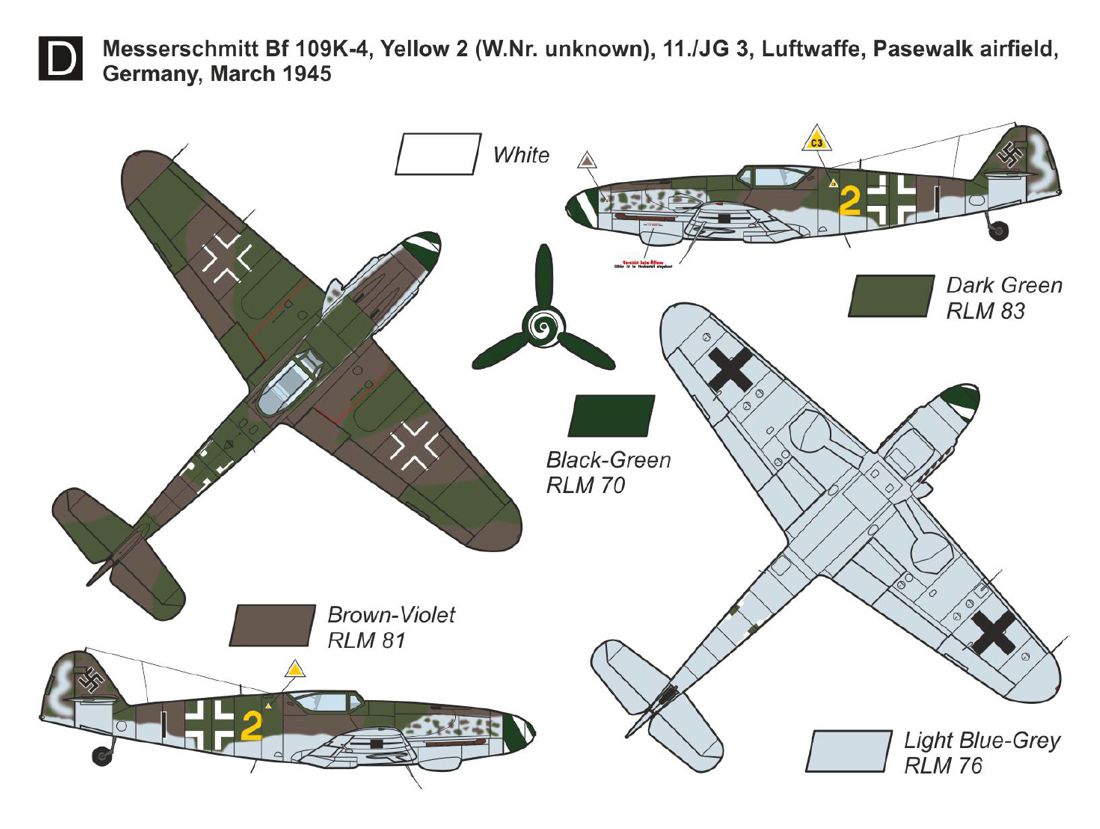

4) Messerschmitt Bf 109K-4, Yellow 2 (W.Nr. unknown), 11./JG 3, Luftwaffe, Pasewalk airfield, Germany, March 1945



Assembly instructions:

MKM144197 Bf 109K-4 Konrad_instr web
